El objetivo de la presente Decisión es garantizar que los Estados miembros cumplan los requisitos establecidos en el presente Reglamento.
 |
| Lugar de origen: | Porcelana |
| Nombre de la marca: | none |
| Número de modelo: | Se trata de un sistema de control de las emisiones de gases de escape. |
| Cantidad de orden mínima: | 1 juego |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | paquete de madera de exportación estándar |
| Tiempo de entrega: | 5-7 días laborables |
| Condiciones de pago: | LC, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 200 |
| Fuente de alimentación: | CA 220 V 50 Hz 1200 W. | Peso: | 100 kilos |
|---|---|---|---|
| Dimensiones:: | 1080×670×1080mm | Impresora: | mini impresora termal |

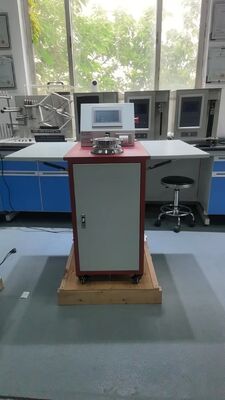

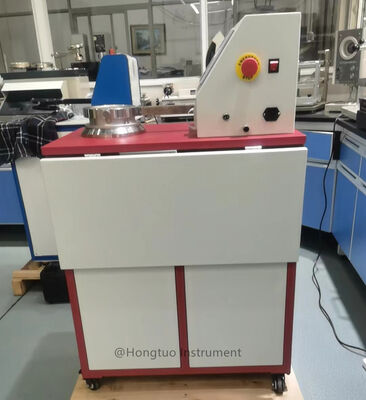

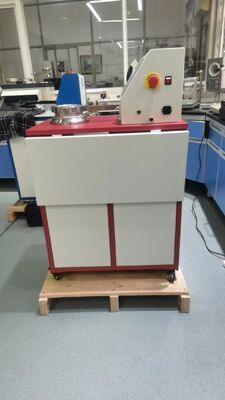

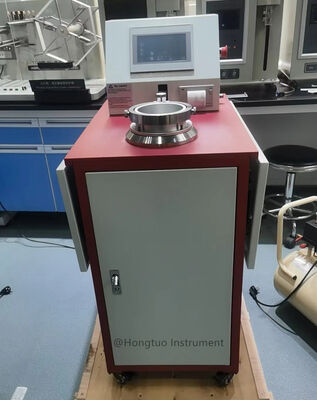

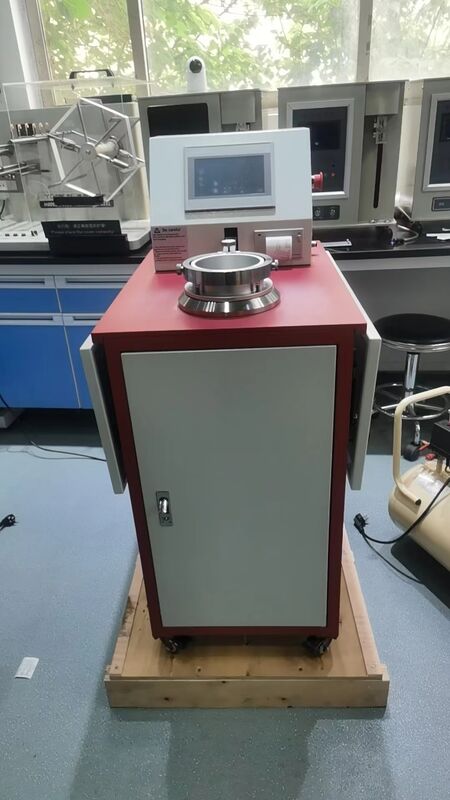

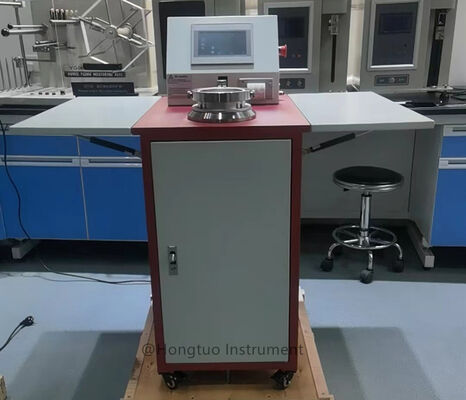

It is used to rapid testing of the air permeability of various sheet materials such as coated fabrics, filter paper, filter media, and plastics.
Standards:
GB/T 5453,GB/T 13764,ISO 9237,ISO 7231,ISO 5636,ASTM D 737,DIN 53887,JIS L 1096,ASTM D 3574,GB/T 24218.15
Features:
1. Touchscreen control with Chinese and English menus and a user-friendly interface for easy operation.
2. Built-in thermal printer for quick on-site printing of test results.
3. Professional computer analysis software allows for two-way operation with a computer, enabling report generation, data analysis, and more.
4. Employs a high-precision differential pressure sensor for high accuracy and repeatability.
5. Allows for nozzle replacement based on measurement range prompts, automatically securing the sample for enhanced accuracy and efficiency.
6. Test parameters can be set digitally, with customizable units.
7. The flow cylinder is constructed from seamless steel tubing for durability and features a cover and lock to ensure both easy nozzle replacement and excellent airtightness.
8. The sample clamping device is cylinder-controlled for automatic sample clamping, ensuring a tight sample hold.
Technical Parameter:
1. Test Pressure: 1～4000Pa (nozzle), 1～1000Pa (sample), 1～4000Pa (sample) (customizable)
2. Measurable Air Permeability: 1～9999mm/s
3. Measurement Error: ≤±2%
4. Measurable Fabric Thickness: ≤12mm
5. Suction Volume Adjustment: Dynamic adjustment based on data feedback
6. Test Area Fixture: Standard: 20cm², 38.3cm²; Optional: 5cm², 50cm², 100cm², φ50mm (≈19.6cm²)
7. Nozzle Parameters:
| No. | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Diameter φ(mm) | 0.8 | 1.2 | 2 | 3 | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
8. Data processing capacity: ≤20×30 tests
9. Printer: Thermal mini printer
10. Data port: RS232 (host computer communication)
11. Dimensions: 1080×670×1080mm
12. Weight: 100kg
13. Power supply: AC220V 50Hz 1200W
